Planar Σώμα Καλοριφέρ
Προϊόν Stelrad για εφαρμογές θέρμανσης με σώματα καλοριφέρ.
Χαρακτηριστικά:
- Horizontal decorative radiator
- Preset adjustable thermostatic valve insert
- Flat front
- Available in colour
Τα επίσημα έγγραφα είναι διαθέσιμα στην ενότητα λήψεων.
Για διαθεσιμότητα, συμβατότητα με το έργο και σωστή τεχνική επιλογή, επικοινωνήστε με την Thomas Moudouros Ltd.
Τεχνικός πίνακας
| Στοιχείο | Περιγραφή |
|---|---|
| Product: | decorative valve radiator with a flat front |
| Finishing: | decorative flat front, upper grille and side panels |
| Pre-installed: | preset Heimeier 4368 or 4369 valve insert, air vent and blind plugs |
| Valve insert: | The integrated adjustable valve insert (without thermostatic head) is factory-fit on the right side of the radiator, CEN certified, tested in accordance with EN215 and compatible with thermostatic heads M30 x 1,5 mm. The thermostatic valve insert is factory-set in relation to the size of the radiator. This presetting ensures optimum throughput in the radiator. Factory setting for two-pipe systems, also suitable for one-pipe systems (as long as the valve insert is adjusted to position 8). |
| Also supplied: | VDI brackets with anti-lift (type Monclac), screws, plugs and installation instructions |

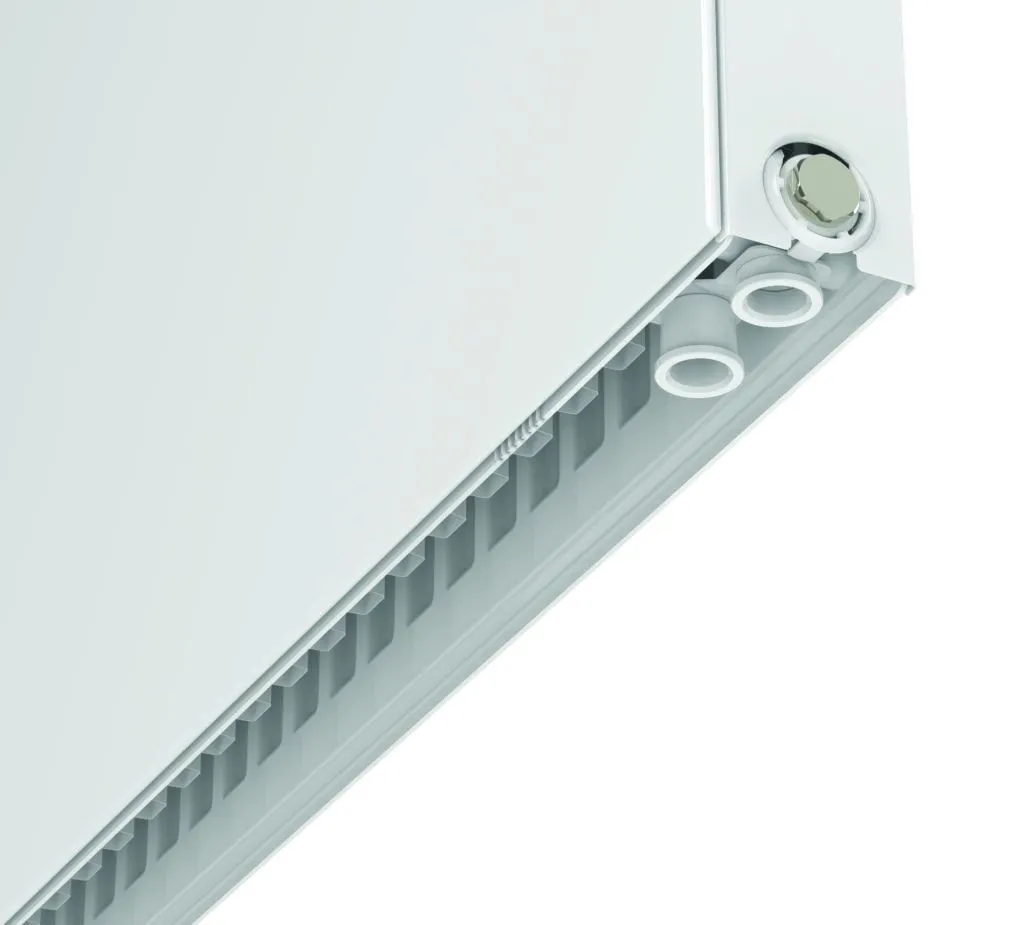

| Connections: | 6 x ½” female connection (2 x ½” lateral bottom connection included). Left version is available on request. |
| Lugs: | 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from 1.800 mm |
| Packaging: | Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator's characteristics are shown on the label: type – height – length. |
| Warranty: | 10 years, as long as the installation instructions have been followed and Stelrad's warranty conditions have been met. |
| Paint process: | All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard. |
| Colours: | Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible |
| Max. operating pressure: | 10 bar (tested to 13 bar) |
| Max. operating temperature: | 110 °C |
| Conformity: | in accordance with EN442 |
| Quality assurance: | NF |
| Types: | 11 | 21 | 22 | 33 |
| Heights: | 300 | 400 | 500 | 600 | 700 | 900 mm |
| Lengths: | 400 – 3.000 mm |
| Depths: | 63 | 79 | 102 | 160 mm |
